The world of motorsports is filled with specialized components, and few are as crucial, or as fascinating, as the funny car transmission․ These aren’t your everyday, off-the-shelf gearboxes; they are purpose-built behemoths designed to withstand the immense power and brutal forces generated by nitro-fueled engines․ Understanding the intricacies of a funny car transmission is like peering into the heart of a fire-breathing dragon, revealing a complex system engineered for one singular purpose: to deliver relentless acceleration down the quarter-mile․ Let’s delve into the unique world of these high-performance marvels․
The Uniqueness of Funny Car Transmissions
Unlike transmissions found in passenger cars or even other racing disciplines, funny car transmissions prioritize sheer strength and rapid gear changes above all else․ Durability is paramount; these transmissions are subjected to unbelievable stress with each run, often exceeding several thousand horsepower․ The goal is simple: transfer every ounce of that power to the rear wheels with minimal energy loss and without exploding into a million pieces․
Key Differences from Standard Transmissions:
- Materials: Funny car transmissions use exotic, high-strength alloys to withstand the extreme forces․ Think hardened steel and specialized heat treatments․
- Gear Ratios: Ratios are carefully chosen to maximize acceleration within the limited distance of a drag race․ Fine-tuning is crucial based on track conditions and engine performance․

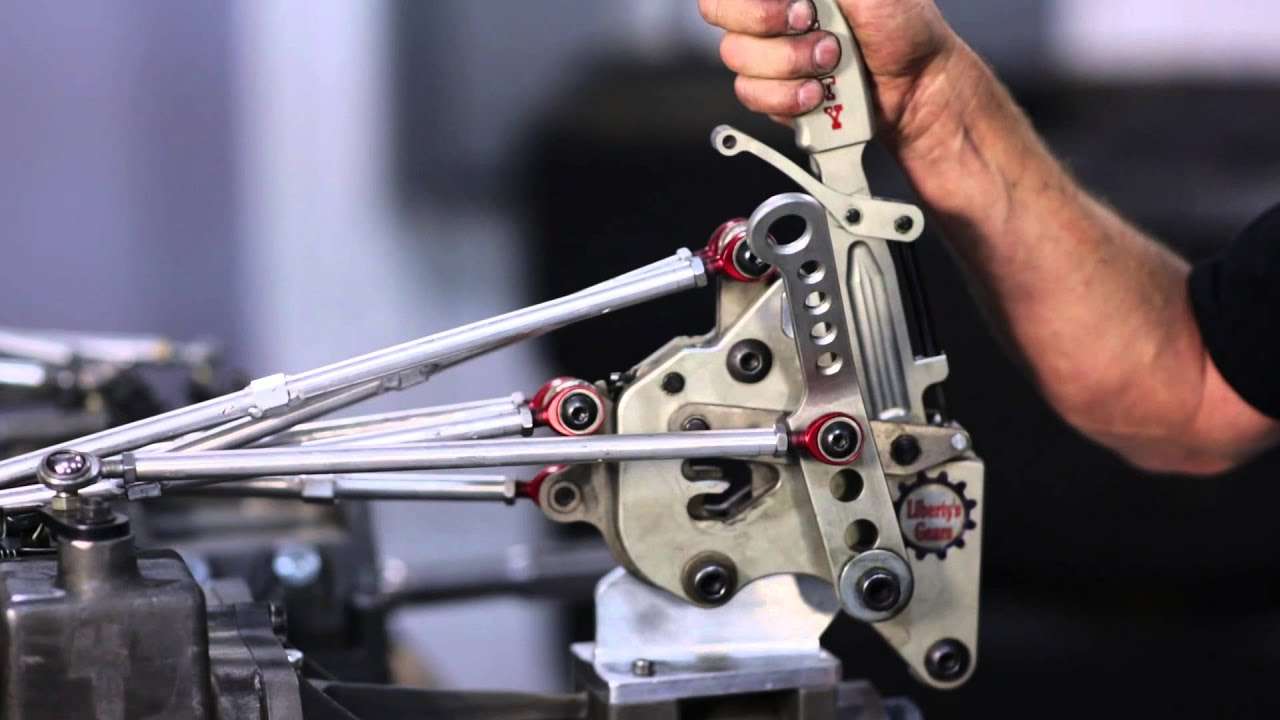

- Shifting Mechanism: Pneumatic or hydraulic shifters provide incredibly fast gear changes, often measured in milliseconds․ Manual shifting is simply not an option at these speeds․
- Internal Design: Reinforced components and robust designs are critical to prevent catastrophic failure under immense stress․
How a Funny Car Transmission Works
While the fundamental principles of gear ratios and power transfer remain the same, the execution is drastically different․ Funny car transmissions often utilize a two- or three-speed configuration․ The focus is on delivering maximum torque to the rear wheels as quickly as possible․ Sophisticated computer systems and sensors monitor engine performance and wheel speed to optimize shift points and prevent wheel spin․ This intricate dance between man and machine is what allows these cars to achieve breathtaking speeds․
The Future of Funny Car Transmissions
Even in the world of drag racing, innovation is constant․ Engineers are continually seeking ways to improve the efficiency and durability of funny car transmissions․ New materials, advanced coatings, and improved shifting mechanisms are all areas of ongoing research and development․ Expect to see even more sophisticated and robust designs in the future, pushing the boundaries of what’s possible in the quest for ever-faster times․ The enduring legacy of the funny car is inextricably linked to its transmission: the conduit between power and performance․
MAINTENANCE AND LONGEVITY
The extreme operational environment necessitates meticulous maintenance protocols to ensure the longevity, albeit limited, of a funny car transmission․ Pre- and post-run inspections are critical, involving thorough examination for cracks, deformation, or any signs of impending failure․ Lubrication with specialized, high-viscosity fluids is paramount to mitigate friction and dissipate heat generated during operation․ Furthermore, regular replacement of key components, such as gears, bearings, and clutches, is mandatory, regardless of apparent condition, to pre-empt catastrophic mechanical breakdown․ The lifespan of a typical funny car transmission is measured in runs, not miles, and proactive maintenance is the only viable strategy for extending its operational window․
PREVENTATIVE MEASURES:
– Regular Inspection: Rigorous visual and mechanical assessment before and after each run․
– Fluid Analysis: Monitoring lubricant viscosity and contamination levels to detect early signs of wear․
– Component Replacement: Scheduled replacement of critical parts based on pre-defined service intervals․
– Calibration and Adjustment: Precise calibration of shifting mechanisms and gear ratios to optimize performance and minimize stress․
COMPARATIVE ANALYSIS: FUNNY CAR VS․ TOP FUEL TRANSMISSIONS
While both Funny Cars and Top Fuel dragsters rely on highly specialized transmissions to manage immense power outputs, subtle yet significant differences exist, tailored to their respective vehicle characteristics and racing strategies․ The table below highlights some of these key distinctions:
Feature
Funny Car Transmission
Top Fuel Transmission
Typical Number of Gears
2-3
2-3
Clutch System
Multi-disc, adjustable slip
Multi-disc, adjustable slip
Material Composition
High-strength steel alloys, specialized coatings
High-strength steel alloys, specialized coatings
Primary Design Focus
Rapid acceleration, responsiveness
Sustained high-speed power delivery
Maintenance Frequency
Very High (inspections after each run)
Very High (inspections after each run)
The distinctions, though nuanced, reflect the specific demands placed upon each type of vehicle․ Funny cars, with their shorter wheelbases and aggressive driving style, require transmissions that prioritize immediate responsiveness and torque delivery․ Top Fuel dragsters, conversely, need transmissions capable of sustaining immense power at high speeds for the duration of the quarter-mile․ This divergence in operational requirements necessitates specialized design considerations and material selection․ The pursuit of performance in both disciplines continually drives innovation in transmission technology, ensuring that these critical components remain at the forefront of motorsports engineering․ The funny car represents a masterclass in the application of engineering principles under extreme conditions․
