Automatic transmissions have revolutionized driving, offering a seamless and convenient driving experience. Unlike manual transmissions requiring the driver to manually shift gears, automatic transmissions handle gear changes automatically, adapting to varying speeds and driving conditions. This sophisticated system involves a complex interplay of mechanical and hydraulic components working in perfect harmony. Understanding how this system functions provides a deeper appreciation for the engineering marvel beneath your feet.

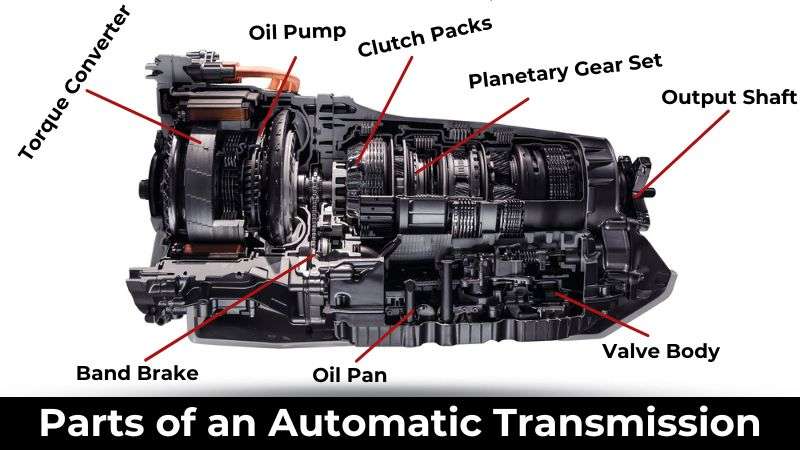

The Core Components of an Automatic Transmission
At the heart of an automatic transmission lies a sophisticated system of interconnected components. These components work together to seamlessly shift gears and transmit power from the engine to the wheels. Understanding these parts is crucial to grasping the overall function of the transmission.
- Torque Converter: This fluid coupling acts as a clutch, transferring power from the engine to the transmission. It allows for smooth starts and protects the transmission from shock loads.
- Planet Carrier: This component houses the planetary gear set, a system of gears that allows for multiple gear ratios. Its rotation determines the overall gear ratio.
- Sun Gear and Ring Gear: These gears, along with the planet carrier, form the planetary gear set. Their interaction allows for the different gear ratios.
- Clutch Packs: These packs of friction plates engage and disengage to select specific gear ratios. Hydraulic pressure controls their engagement.
- Valve Body: The brain of the operation, this component uses hydraulic pressure to control the clutch packs and shift gears based on various factors such as engine speed and throttle position.
The Role of Hydraulic Pressure
Hydraulic pressure plays a vital role in the operation of an automatic transmission. It’s the force that engages and disengages the clutch packs, selecting the appropriate gear ratio. This pressure is controlled by the valve body, which constantly monitors various inputs to determine the optimal gear selection.
The valve body receives signals from sensors that monitor engine speed, vehicle speed, and throttle position. Based on this information, it precisely adjusts hydraulic pressure to smoothly shift between gears. This sophisticated control system ensures that the transmission always operates in the most efficient and effective manner. The system is incredibly complex, involving intricate calculations and adjustments that happen in milliseconds.
How the Gear Shifting Process Works
The process of shifting gears in an automatic transmission is a marvel of engineering. It involves a series of precisely timed actions, all coordinated by the valve body. This is far from a simple on/off switch; it’s a delicate dance of hydraulic pressure and mechanical components.
When the driver accelerates, the engine speed increases, and the valve body receives this information from sensors. Based on this input, the valve body adjusts hydraulic pressure to engage different clutch packs; This engagement changes the planetary gear set’s configuration, resulting in a higher gear ratio. This process is repeated as the vehicle accelerates, ensuring optimal power delivery at various speeds.
Understanding Gear Ratios
Gear ratios are crucial for understanding how an automatic transmission functions. A higher gear ratio means that the engine rotates faster for a given vehicle speed, providing more power for acceleration. A lower gear ratio means the engine rotates slower for the same speed, optimizing fuel efficiency at higher speeds.
The automatic transmission selects the appropriate gear ratio based on driving conditions. For instance, during acceleration, it chooses lower gear ratios to provide maximum power. Conversely, at cruising speeds, it selects higher gear ratios to maximize fuel efficiency and minimize engine speed.
Types of Automatic Transmissions
Over the years, automatic transmissions have evolved significantly. Several types of automatic transmissions exist, each with its own unique characteristics and advantages.
- Traditional Automatic Transmissions: These utilize a torque converter and planetary gear sets to achieve gear changes. They are relatively simple in design but can be less efficient than newer technologies;
- Continuously Variable Transmissions (CVTs): These transmissions use a belt and pulley system to provide a continuously variable gear ratio, resulting in smoother acceleration and improved fuel economy. However, they can sometimes feel less responsive than traditional automatics.
- Dual-Clutch Transmissions (DCTs): These transmissions use two separate clutches to manage odd and even gears, allowing for incredibly fast and smooth shifts. They offer performance characteristics similar to manual transmissions but with the convenience of an automatic.
Technological Advancements
Modern automatic transmissions incorporate advanced technologies such as electronic control units (ECUs) and sophisticated algorithms to optimize performance and fuel efficiency. These systems constantly monitor various parameters and adjust gear selection accordingly. This results in smoother shifting, better fuel economy, and improved overall driving experience.
Adaptive learning algorithms are also becoming increasingly common. These algorithms learn driving habits and adjust shift patterns to match the driver’s style. This personalized approach leads to a more intuitive and responsive driving experience.
Maintaining Your Automatic Transmission
Proper maintenance is crucial for ensuring the longevity and smooth operation of your automatic transmission. Regular fluid and filter changes are essential, as the transmission fluid lubricates and cools the internal components. Neglecting this maintenance can lead to premature wear and tear, resulting in costly repairs.
It’s also important to avoid harsh driving habits such as excessive acceleration and sudden braking. These habits put extra stress on the transmission, reducing its lifespan. Regular inspections by a qualified mechanic can help identify potential problems early, preventing major issues from developing.
